Amberg TrackControl




Amberg TrackControl - die neue innovative Monitoring-Lösung für Bahngleise gewährleistet höchste Zuverlässigkeit und Sicherheit

Amberg TrackControl überwacht alle sicherheitsrelevanten Gleisparameter wie Querneigungen, Verwindungen und vertikale Pfeilhöhen - und dies absolut unabhängig von den Wetterbedingungen und in einer hohen Taktrate von einer Minute.

Die Datenakquisition erfolgt zuverlässig im Minutentakt:

  • Das System funktioniert unabhängig von witterungsbedingten Einschränkungen wie Niederschlag, Schnee oder Nebel
  • Auch stehende oder durchfahrende Züge bereiten den geotechnischen Sensoren keine Probleme
  • Höchste Sicherheit für den Bahnbetrieb durch hohe Messgenauigkeit, Ausfallsicherheit und Anwendung fortschrittlicher Analysemethoden.
  • Geringe Personal- und Wartungskosten dank der einfachen und kompakten Bauweise
  • Echtzeit-Messdaten können mit der Plattform GEOvis jederzeit und von überall abgerufen, visualisiert und analysiert werden
  • Die integrierte Alarmierungsfunktion informiert Sie in Echtzeit per Email oder SMS

Das System eignet sich für folgende Anwendungsbereiche:

  • Bei gleisnahen Baustellen
  • Bei unterquerenden Baumassnahmen (Rohrvortriebe, Tunnel, Unterführungen, etc.)
  • Beim Einsatz von Hilfsbrücken

Wir freuen uns, Ihr Projekt auszuführen

In Zusammenarbeit mit unseren Technologie-Partnern und internen Spezialisten bieten wir Ihnen massgeschneiderte Lösungen und Geräte auf dem neuesten Stand der Technik.

Kontaktieren Sie uns

Track Control Datenblatt

Die entscheidenden Informationen in Echtzeit

Amberg Infra 7D – Vermessung – Bauvermessung – Ingenieurvermessung – Gebäudevermessung – Punktwolke – 3D-Pointcloud – BIM – BIM-Modelle – DGM – Digitales Geländemodell – Gleisscan – Rail Scan – Gleisgeometrie – Rail Geometry – Monitoring – Geomonitoring – Überwachungsmessung – Strukturüberwachung – LOD100 – LOD500 – Infrastrukturvermessung – Infrastruktur-Digitalisierung – Inspektion – Bauwerksinspektion – Deformation – Deformationsmessung – Automatisierte Vermessung – Automated Surveying – Beweissicherung – Dilapidation Survey – Digitale Bauwerksaufnahme – Digital Twins – Reality Capture – Hochpräzise Vermessung – Engineering Vermessung – Infrastrukturplanung – Infrastrukturmanagement – Tunnelvermessung – Railway Surveying – 7D-Infrastrukturmodelle – Smart Infrastructure Solutions – Amberg Infra 7D Solutions – Surveying – Construction Surveying – Engineering Surveying – Building Survey – Pointcloud – 3D Point Cloud – BIM – DTM – Digital Terrain Model – Rail Scan – Railway Geometry – Track Geometry – Monitoring – Structural Monitoring – LOD100 – LOD500 – Infrastructure – Infrastructure Mapping – Inspection – Asset Inspection – Deformation Measurement – Automated Surveying – Dilapidation Survey – Digital Structure Capture – Geospatial Solutions – Infrastructure Digitalization – Reality Capture – Digital Twin Creation – High-Precision Surveying – Engineering Measurement – Tunnel Surveying – Railway Survey – Smart Infrastructure – Amberg Infra 7D

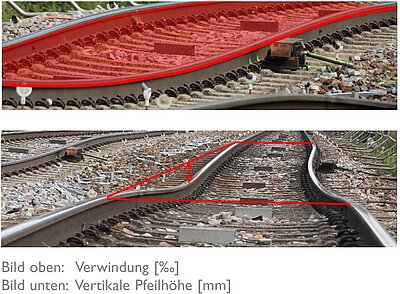

Amberg TrackControl misst zuverlässig:

  • Gleisverwindungen
  • Überhöhungen
  • Vertikale Pfeilhöhen und Setzungen im Minutentakt

Ein international bewährtes System

Amberg TrackControl ist ein bewährtes Gleisüberwachungssystem, welches erfolgreich in Projekten der nationalen und privaten Bahngesellschaften der Schweiz, Deutschland und Frankreich eingesetzt wird. Die zuverlässige Alarmierung bei vergangenen Havarien belegt die hohe Funktionalität des Systems.

Mit Amberg TrackControl haben Sie Ihre Gleisanlagen stets im Griff und erhöhen die Sicherheit Ihrer Bahninfrastruktur. Mit unserem internationalen Partnernetzwerk garantieren wir einen zuverlässigen Kundensupport.

Ein modulares System, angepasst an Ihr Projekt

  • Das Basismodul misst Deformationen mit 48 Längs-, 12 Quer und optional vier Mastsensoren auf einer Gleislänge von 56 Metern
  • Erweiterung des Basismoduls durch den Anschluss von bis zu fünf weiteren Modulen auf eine Gesamtlänge von bis zu 340 Metern
 BasismodulMax. Setup (6 Module)
Längs-Sensoren (uniaxial)48288
Quer-Sensoren (uniaxial)1227
Mast-Sensoren (optional, biaxial)424
Temperaturgrenzwerte-50ºC to +80ºC
Distanz zwischen LängsSensoren1.2 Meter
Distanz zwischen Quer-Sensoren4.8 Meter

Amberg GEOvis - Die Plattform für GeoMonitoring Projekte

Amberg Infra 7D – Vermessung – Bauvermessung – Ingenieurvermessung – Gebäudevermessung – Punktwolke – 3D-Pointcloud – BIM – BIM-Modelle – DGM – Digitales Geländemodell – Gleisscan – Rail Scan – Gleisgeometrie – Rail Geometry – Monitoring – Geomonitoring – Überwachungsmessung – Strukturüberwachung – LOD100 – LOD500 – Infrastrukturvermessung – Infrastruktur-Digitalisierung – Inspektion – Bauwerksinspektion – Deformation – Deformationsmessung – Automatisierte Vermessung – Automated Surveying – Beweissicherung – Dilapidation Survey – Digitale Bauwerksaufnahme – Digital Twins – Reality Capture – Hochpräzise Vermessung – Engineering Vermessung – Infrastrukturplanung – Infrastrukturmanagement – Tunnelvermessung – Railway Surveying – 7D-Infrastrukturmodelle – Smart Infrastructure Solutions – Amberg Infra 7D Solutions – Surveying – Construction Surveying – Engineering Surveying – Building Survey – Pointcloud – 3D Point Cloud – BIM – DTM – Digital Terrain Model – Rail Scan – Railway Geometry – Track Geometry – Monitoring – Structural Monitoring – LOD100 – LOD500 – Infrastructure – Infrastructure Mapping – Inspection – Asset Inspection – Deformation Measurement – Automated Surveying – Dilapidation Survey – Digital Structure Capture – Geospatial Solutions – Infrastructure Digitalization – Reality Capture – Digital Twin Creation – High-Precision Surveying – Engineering Measurement – Tunnel Surveying – Railway Survey – Smart Infrastructure – Amberg Infra 7D

  • Effiziente Installation mit neuster Sensorgeneration! Amberg TrackControl mit flexiblen Steckverbindungen und innovativer Magnet-Befestigung.
  • Einfache und schnelle Installation, Modulerweiterung und Deinstallation ohne Behinderung des Bahnbetriebs
  • Messung absoluter und/oder relativer Gleisdeformationen mittels Georeferenzierung der Sensoren

DatenakquisitionGenauigkeit
Gleisüberhöhungen+/- 1.0 mm
Verwindungen+/- 0.2 ‰
Vertikale Pfeilhöhen+/- 1.0 mm
Vertikale Setzung+/- 3.5 mm
Messfrequenz1x pro Minute (oder weniger)
Amberg Infra 7D – Vermessung – Bauvermessung – Ingenieurvermessung – Gebäudevermessung – Punktwolke – 3D-Pointcloud – BIM – BIM-Modelle – DGM – Digitales Geländemodell – Gleisscan – Rail Scan – Gleisgeometrie – Rail Geometry – Monitoring – Geomonitoring – Überwachungsmessung – Strukturüberwachung – LOD100 – LOD500 – Infrastrukturvermessung – Infrastruktur-Digitalisierung – Inspektion – Bauwerksinspektion – Deformation – Deformationsmessung – Automatisierte Vermessung – Automated Surveying – Beweissicherung – Dilapidation Survey – Digitale Bauwerksaufnahme – Digital Twins – Reality Capture – Hochpräzise Vermessung – Engineering Vermessung – Infrastrukturplanung – Infrastrukturmanagement – Tunnelvermessung – Railway Surveying – 7D-Infrastrukturmodelle – Smart Infrastructure Solutions – Amberg Infra 7D Solutions – Surveying – Construction Surveying – Engineering Surveying – Building Survey – Pointcloud – 3D Point Cloud – BIM – DTM – Digital Terrain Model – Rail Scan – Railway Geometry – Track Geometry – Monitoring – Structural Monitoring – LOD100 – LOD500 – Infrastructure – Infrastructure Mapping – Inspection – Asset Inspection – Deformation Measurement – Automated Surveying – Dilapidation Survey – Digital Structure Capture – Geospatial Solutions – Infrastructure Digitalization – Reality Capture – Digital Twin Creation – High-Precision Surveying – Engineering Measurement – Tunnel Surveying – Railway Survey – Smart Infrastructure – Amberg Infra 7D

Datenblätter:

Reference projects:

Amberg GeoMonitoring Produkte

Amberg GeoMonitoring

Amberg GeoMonitoring bietet Ihnen durch erstklassigen Service und Einsatz innovativer Technologien ein Höchstmass an Sicherheit und Wirtschaftlichkeit.

Amberg GEOvis

Die Plattform für Ihre GeoMonitoring-Projekte. Mit dem Online-Portal GEOvis haben Sie jederzeit und überall Zugriff auf Ihre Messdaten.

Fragen & Antworten

Yes, Amberg TrackControl is successfully used in projects in Switzerland, Germany, France, and other European countries. It has been deployed by national railway companies such as SBB (Switzerland) and Deutsche Bahn (Germany). After the Rastatt tunnel incident, TrackControl was established as the standard monitoring system by Deutsche Bahn. Through the international partner network of Amberg Infra 7D, reliable customer support is guaranteed.

Yes, with just one measuring station, TrackControl can monitor up to 420 sensors or up to 400 m of track length according to the Swiss guideline (measurement profile spacing of 4.8 m), or 315 m according to the Euro guideline (spacing of 3.0 m). The monitoring can be extended as required with additional measuring stations, making the system scalable to virtually any track length.

TrackControl offers significant advantages: continuous measurement once per minute (vs. periodic manual measurements), weather independence (works in rain, snow, fog), no obstruction of railway operations during installation, low personnel and maintenance costs thanks to simple and compact design, high measurement accuracy and reliability, fully automatic operation with real-time alerting, and remote access to data via GEOvis from anywhere at any time. The innovative magnetic sensor mounting allows efficient installation without the need for rail drilling.

TrackControl is fully integrated into the GEOvis platform. Measurement data is transmitted in real time from the field sensors through the central measurement unit to GEOvis via internet connection. All standard GEOvis features are available: real-time data visualization, configurable alarm plans with multiple alert levels, automatic report generation, data export, and the integrated logbook. The alarm function notifies responsible persons immediately via email or SMS when threshold values are exceeded.

Amberg TrackControl is a proven track monitoring system successfully used in projects of national and private railway companies in Switzerland, Germany, and France. Notable reference projects include: the Tunnel Rastatt project (since 2016, with 210 sensors, later established as the standard monitoring system for Deutsche Bahn), the Ingolstadt railway station (pipe jacking under active tracks), and various projects involving the Swiss Federal Railways (SBB/CFF/FFS). The reliable alarming during past incidents demonstrates the high functionality of the system.

TrackControl data is visualized on the Amberg GEOvis platform with dedicated visualization tools: overview maps showing sensor locations and status, sensor status profiles, track deformation curves (twist, vertical versine, settlement deformations), temperature-time curves, and settlement diagrams with reference measurements. Alarm limits (AMW, IW, SEW) are displayed directly in the graphs, making it easy to see when values approach or exceed thresholds.

Yes, TrackControl operates independently of weather-related restrictions such as rain, snow, or fog. The geotechnical MEMS sensors are not affected by these conditions, unlike optical measurement systems. Even standing or passing trains cause no problems for the sensors. The system operates within a temperature range of -20°C to +80°C with built-in temperature compensation.

TrackControl is designed for the following application areas: construction sites close to railway tracks, underpassing construction measures such as pipe jacking (microtunneling), tunnel construction, and underpass construction beneath active railway lines, as well as projects using auxiliary bridges. It is the ideal solution whenever railway track geometry needs to be monitored continuously during nearby construction activities to ensure safe train operations.

The TrackControl system consists of: TrackControl Basic units and TrackControl Extended units connected to sensor boxes. Each sensor box or central measurement unit can handle up to 64 sensors (48 longitudinal sensors, 12 transverse sensors, and 4 mast tilt sensors). The sensors can be deployed in variable spacing of 4.8 m (Swiss guideline) or 3.0 m (Euro guideline). With one central measurement unit and up to 5 sensor boxes, a maximum track length of approximately 340 m per power connection can be monitored. The system is nearly endlessly expandable with additional measurement stations.

TrackControl sensors are mounted on the rail using an innovative magnetic fastening system. This allows quick and easy installation, extension, and deinstallation without obstructing railway operations. The magnetic mounting solution is approved for use on Deutsche Bahn (German Railways) tracks. The sensors are connected via flexible plug connections to sensor boxes and a central measurement unit, which communicates with the GEOvis platform via LAN/Power over Ethernet or mobile network (UMTS).

TrackControl is based on MEMS tilt sensors that are mounted directly on the rail. There are two types of tilt sensors: longitudinal sensors (measuring along the track direction) and transverse sensors (measuring perpendicular to the track). The sensors communicate via RS 485 protocol. They feature built-in temperature compensation (both laboratory and field calibration) and filtering of unwanted effects such as vibrations from passing trains. The entire system operates independently of weather conditions such as rain, snow, or fog.

TrackControl performs data acquisition once every minute as standard. For special applications, shorter measurement intervals can be configured. This high measurement frequency ensures that any changes in track geometry are detected immediately, allowing for rapid response to potential safety hazards.

TrackControl reliably measures the following track geometry parameters: superelevation (cant) with an accuracy of +/- 1.0 mm, twist (warp) with +/- 0.2 ‰, vertical versine with +/- 1.0 mm, and vertical settlement with +/- 3.5 mm. The system measures both absolute and relative track deformations using georeferenced sensor positions. Horizontal displacement is typically not measured, as it rarely occurs without tilting. However, by combining TrackControl with distance measurements, total stations, or GPS, complete 3D measurements are possible.

Amberg TrackControl is a specialized geomonitoring system for seamless, real-time monitoring of railway tracks. It uses MEMS (Micro-Electro-Mechanical Systems) tilt sensors to reliably measure track distortions such as cant (superelevation), twist, vertical versine, and settlement. The system provides continuous data acquisition once every minute, ensuring maximum safety for railway operations around the clock.
