Amberg Mobilemapping

Amberg MobileMapping offers perfect solutions for fast and trouble-free data acquisition

The increasing demand of modern mobility are driving infrastructure networks to their limits. The often outdated constructional infrastructure is in desperate need of renovation. Closures for surveying are generally not possible or are too expensive.

No matter whether a subway, a freeway, or a mountain road, by day or by night, Amberg MobileMapping offers perfect solutions for fast and trouble-free data acquisition of the surrounding objects as well as for profitable analysis of the data.

We are pleased to carry out your project

In collaboration with our technology associates and in-house specialists, we provide state-of-the-art solutions and instruments tailored to your needs.

MobileMapping Brochure

Fields of application

In the underground, on the surface and from above

Whether on tracks, on the street, in tunnels or airborne - Amberg Technologies offers the right solution for every measurement requirement using special proprietary systems and cutting-edge technology.

The outstanding measurement capabilities of the kinematic measurement systems allow execution with little or no interruption of traffic flow. This reduces the operator’s costs and is easy on the nerves of all traffic participants.

Minimal interruption of traffic: Reduce costs and annoyance
One measurement - Greatest possible value: Efficient. Convenient. Cost-effective.
Every centimeter counts: Project optimization through data refinement

Services

You can count on our know-how and our surveying specialists in the preparation of project fundamentals, clearance analyzes, preservation of evidence, or damage inspections.

Every centimeter counts – Project optimization through data refinement
The 3D data captured at high resolution and with great precision enables detailed evaluation of the clearance conditions.

Don’t risk a collapse – Safety through full-coverage inspection
The inspection is based on high-definition image data and documents the condition of the infrastructure object with clarity.

Amberg Infra 7D – Vermessung – Bauvermessung – Ingenieurvermessung – Gebäudevermessung – Punktwolke – 3D-Pointcloud – BIM – BIM-Modelle – DGM – Digitales Geländemodell – Gleisscan – Rail Scan – Gleisgeometrie – Rail Geometry – Monitoring – Geomonitoring – Überwachungsmessung – Strukturüberwachung – LOD100 – LOD500 – Infrastrukturvermessung – Infrastruktur-Digitalisierung – Inspektion – Bauwerksinspektion – Deformation – Deformationsmessung – Automatisierte Vermessung – Automated Surveying – Beweissicherung – Dilapidation Survey – Digitale Bauwerksaufnahme – Digital Twins – Reality Capture – Hochpräzise Vermessung – Engineering Vermessung – Infrastrukturplanung – Infrastrukturmanagement – Tunnelvermessung – Railway Surveying – 7D-Infrastrukturmodelle – Smart Infrastructure Solutions – Amberg Infra 7D Solutions – Surveying – Construction Surveying – Engineering Surveying – Building Survey – Pointcloud – 3D Point Cloud – BIM – DTM – Digital Terrain Model – Rail Scan – Railway Geometry – Track Geometry – Monitoring – Structural Monitoring – LOD100 – LOD500 – Infrastructure – Infrastructure Mapping – Inspection – Asset Inspection – Deformation Measurement – Automated Surveying – Dilapidation Survey – Digital Structure Capture – Geospatial Solutions – Infrastructure Digitalization – Reality Capture – Digital Twin Creation – High-Precision Surveying – Engineering Measurement – Tunnel Surveying – Railway Survey – Smart Infrastructure – Amberg Infra 7D

Be ready for the future – Planning and maintenance with Building Information Modelling (BIM)
Amberg is your favored BIM partner for your infrastructure projects. BIM Consulting, Coordination and implementation, Field2BIM or BIM2Field – get supported over the whole life cycle of your building.

Secure your evidence today – Save yourself trouble tomorrow
Construction work can cause damage to existing structures. Professional and unbiased conservation of evidence protects you from unjustified claims.

Minimize project risks – Planning based on reliable data
Certainty instead of estimates – Base your project on precise and reliable data and avoid unpleasant surprises.

Systems at a glance

Modular and reliable: The customer's requirements (accuracy, closure times, speed, etc.) determine the selection of the measurement system and the sensors. Amberg MobileMapping systems stand out due to their versatility and flexibility. The latest in modern technology in combination with innovative software ensures efficient measurement operations and high quality results.

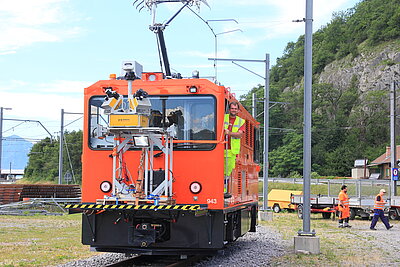

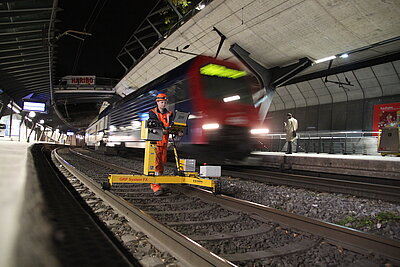

Amberg IMS / GRP 5000

Railway
Metros
Tramway and Lightrail

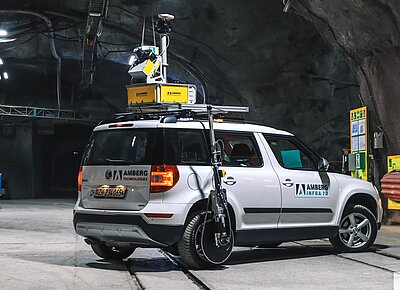

Amberg MobileMapping System

Roads
Railway
Metros
Tramway and Lightrail

Creep Drive

Tunnels
Roads

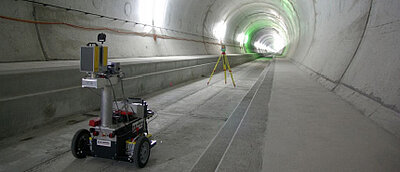

Amberg MISS

Tunnels (road or other)
Roads

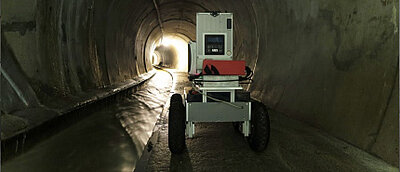

Amberg Mini-MISS

Sewers
Galleries
Caverns

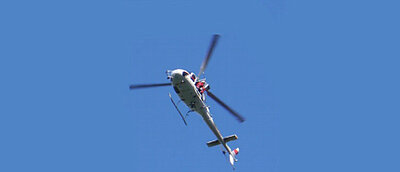

Airborne Mapping (UAV / helicopter)

Infrastructure installations
Natural hazards
Traffic routes

Frequently Asked Questions

MobileMapping offers several key advantages: significantly higher measurement speed (one pass at up to 100 km/h vs. days of manual surveying), minimal traffic disruption, one measurement delivering multiple analysis products, cost efficiency through data reuse, complete 3D documentation rather than just individual measurement points, and immediate digital data availability through the cloud platform.

MobileMapping covers a wide range of infrastructure: railways (mainline, metro, tramway, light rail), road tunnels and highways, road surfaces and road furniture, sewer systems and underground galleries, cable routes and utility infrastructure, bridges, and airport facilities. The flexible system portfolio ensures an optimal solution for each application.

Yes, MobileMapping is particularly well suited for tunnel applications. The MISS and IMS 5000 systems are specifically designed for tunnel inspection and operate in complete darkness without external lighting. They produce high-resolution greyscale images and precise 3D point clouds for damage detection, condition assessment, and maintenance planning – all with minimal tunnel closure time.

The system integrates several high-end components: two Profiler 6012 laser scanners capturing over 2 million points per second with millimeter accuracy, a 360° calibrated multi-camera system for image-supported surveying, a high-end Inertial Measurement Unit (IMU) for precise positioning at high speeds, and a GNSS receiver for satellite-based georeferencing. All data is synchronized in real time during acquisition.

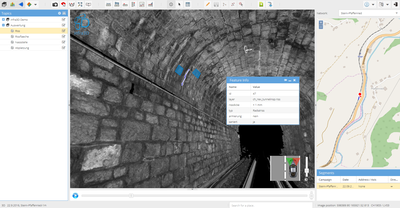

All data is made available through the Amberg Cloud Platform, a 3D web viewer accessible from any location. Customers can view their data online, take virtual data tours from the office, and access project visualizations in real time. The platform supports multiple simultaneous users and is available 24/7 via web browser or mobile device.

Yes, one of the key advantages of MobileMapping is minimal disruption to traffic. The measurement vehicle travels at normal operating speeds (up to 80–100 km/h), so no road or track closures are typically required. A single measurement pass captures all needed data, reducing the time on site to a minimum. Night operations are also possible for sensitive locations.

Typical applications include: clearance surveys and analyses for railway electrification or new rolling stock, tunnel inspection and condition assessment, as-built documentation of tunnels, tracks and roads, track geometry measurement, catenary wire position and condition assessment, signal and infrastructure inventory, digital terrain models for road projects, rail head deformation measurement, and evidence documentation before and after construction projects.

Dynamic Clearance Analysis is an advanced method that calculates the available clearance at every centimeter along a track or structure. Unlike simplified methods, it follows the exact rail curve geometry including clothoid transitions and banking (Überhöhung). This precision prevents oversized design margins and leads to significant cost savings – for example, multiple centimeters per banking transition, which on a project with 35 tunnels (such as the SBB 4m-Korridor) can result in substantial reductions in construction costs.

MobileMapping produces a wide range of outputs: 3D point clouds, high-resolution 360° panoramic images, greyscale images for damage analysis, orthophotos, digital terrain models, CAD-compatible files (DWG, DXF), BIM-ready geometry data, clearance maps with color-coded encroachments, profile reports in PDF and DXF format, and volume calculations. All data can be accessed via the Amberg Cloud Platform’s 3D web viewer.

The standard accuracy with good GNSS signal is 15–25 mm. With ground control points (Passpunkte), an accuracy of less than 10 mm is achievable. The point cloud resolution on tunnel surfaces reaches ≤10 mm. The MISS system achieves a profile precision of ±3 mm, and the IMS 5000 delivers submillimeter accuracy for track geometry with a 3D point cloud resolution of 3 mm.

Amberg Infra 7D offers a range of systems for different applications: The Amberg MobileMapping System (MMS) is a flexible platform mountable on cars, locomotives, quads or boats, operating at up to 80–100 km/h. The Amberg GRP 5000 is designed for rail, metro, and tramway systems. The Amberg MISS is a remote-controlled vehicle for tunnel inspection at 0.5–8 km/h. The Amberg Mini-MISS is a compact variant for sewers, galleries, and caverns. The Amberg IMS 5000 delivers submillimeter track geometry. Additionally, airborne mapping via UAV or helicopter covers large areas.

MobileMapping is a high-speed, kinematic surveying technology that captures the 3D geometry of infrastructure with millimeter accuracy. Using laser scanners, cameras, and inertial navigation, it records complete infrastructure geometry while traveling at speeds of up to 80–100 km/h. A single measurement run produces multiple analysis products – from 3D point clouds to clearance analyses and as-built documentation – with minimal disruption to traffic operations.
